Case Studies

Ford Transit Steel Tipper Refurbishment

In addition to new build, Osborne offer refurbishment of existing bodywork.

Recent work includes a Ford Transit steel tipper.  Originally of all steel construction and painted finish the vehicle bodywork was showing signs of corrosion and ageing. commercial vehicle bodies

Osborne stripped off the existing dropsides and tailboard, replacing them with new alloy hollow plank sections. The dished and bowed steel floor was overlaid with Zintec steel sheet. The refurbished body will be long lasting, aesthetically pleasing and lighter, giving the customer additional payload.

Financially this option is more economical than the outlay for a new body. (Less than half price)

If you are considering having your commercial vehicle bodies altered and would like to find out more about the services we can provide, then please get in touch with us by either completing our contact form, email us at sales@osborneltd.co.uk or telephone us on 01371 831313.

Contact Us

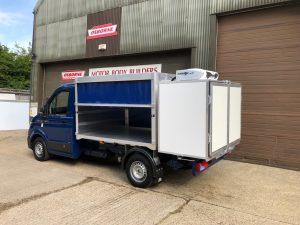

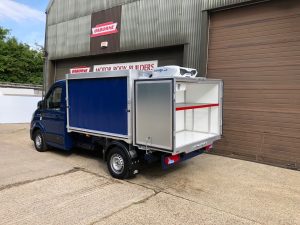

Fully Insulated and Refrigerated Dairy Body

Osborne Motor Bodies have recently completed a total refurbishment, including repairs to accident damage and bodyswop of a 'Safeload' fully insulated and refrigerated dairy body.

This was the first body of this type supplied to the customer back in 2001. Since then Osborne Motor Bodies have gone onto supply new bodywork, chassis and carryout refurbishments on a fleet that now numbers 6 vehicles.

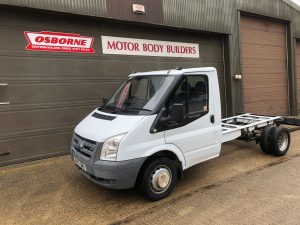

In addition to the bodywork refurbishment Osborne Motor Bodies supplied the used Ford Transit 350 chassis cab which was sourced from a national fleet with full service history and guaranteed low mileage.

This combination illustrates the full range of services Osborne Motor Bodies offer to the Dairy Industry. Proof that initial Quality of build and Osborne capabilities gives customers long lasting and durable products, economically in these times of financial restraint.

If you are considering a commercial vehicle conversion and would like to find out more about the services we can provide, then please get in touch with us by either completing our contact form, email us at sales@osborneltd.co.uk or telephone us on 01371 831313.

Contact Us

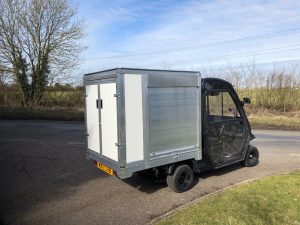

Commercial Vehicle Conversion For A Rural Hotel

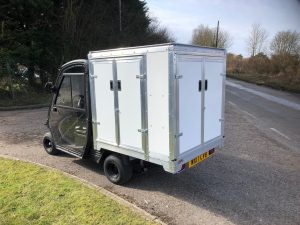

Osborne Motor Bodies Ltd have recently completed a bespoke compact Box van build for a specialist delivery operation.

Commercial Vehicle Conversion

Based on an environmentally friendly electric chassis, Osborne worked in conjunction with the discerning end user to design and manufacture the multi-compartment unit to meet their exact demands producing a service vehicle for use at a rural hotel location.

Constructed from GRP composite panels and alloy framework the finished article has a clean hygienic appearance.
Nearside features a compartment with shelving specifically to accommodate customer's storage boxes. Accessed by double doors, giving maximum usable height.
The offside has two full length shelves, easily removable to allow larger items to be transported. Accessed via a narrow lath alloy shutter.
To the rear, double doors give access to a garment compartment with hanging rail and additional shelving.Commercial Vehicle Conversion

This type of project is well suited to Osborne's range of skills including close attention to detail with regards to items such as servicing access for the vehicle batteries etc.

For more details contact Osborne.

Contact Us

Bike Wash Commercial Vehicle Conversion

We have just finished a commercial vehicle conversion for a mobile bicycle wash and servicing company who are looking to offer their services at their customer's place of work.

This entailed the following:

  • Lining out a standard panel van with GRP lining to give washout facility
  • Plastic water tank to feed pressure washer to be carried on board
  • Bespoke fold out alloy ramp to accommodate same through side load door
  • Roof lining and interior lights to service bay
  • Bike holder to facilitate servicing
  • After Bike Wash Vehicle                     Conversion

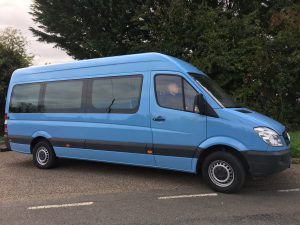

    After Bike Wash Vehicle Conversion

    After Bike Wash Vehicle                     Conversion

    After Bike Wash Vehicle Conversion

    bike wash                     vehicle

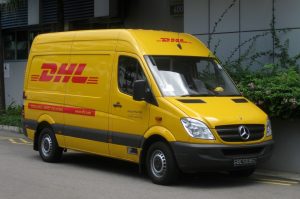

    Before Bike Wash Vehicle Conversion

If you are considering a commercial vehicle conversion and would like to find out more about the services we can provide, then please get in touch with us by either completing our contact form, email us at sales@osborneltd.co.uk or telephone us on 01371 831313.



Contact Us

VW Transporter Osborne Milk Float

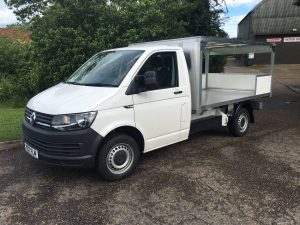

VW Transporter Milk Float

VW Transporter Osborne Milk Float

The vehicle is fitted with All alloy construction milk float deck with GRP opal skin roof, smooth alloy plank floor, plastic wings and rubber mudflaps. Decklight with switch in cab.

Built to the specific requirements of a discerning local customer, the vehicle has GRP half rear bulkhead and side cheek panels and rear top marker lights fitted.

Payload is approximately 1100kgs. Which equates to 58 crates plus driver making this an impressive mid-range vehicle for the industry sector.

For more details contact Mr. Anthony R. Osborne on 01371 831313.

Contact Us

Ford Transit 'Quickload' shuttersided vehicles.

Grounds Maintenance Vehicles 03

Ford Transit 'Quickload' shuttersided vehicles.

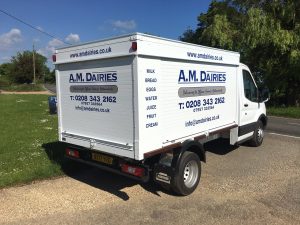

Osborne Motor Bodies Ltd, dairy vehicle specialists have recently completed two new Ford Transit 'Quickload' shuttersided vehicles.

The 'Quickload' body is alloy framed throughout with smooth face alloy plank floor and solid front bulkhead with rear view aperture. Alloy framed roof with GRP opal skin. Sides and rear enclosed by narrow lath alloy roller shutters. Hasp and Staple closure. Alloy crate retainers, plastic rear wings and mudflaps. LED Decklight. Deck mounted insulated goods box.

Osborne supplied the complete vehicles including painting and livery to customer's specific requirements.

For more details contact Mr. Anthony R. Osborne on 01371 831313.

Grounds Maintenance Vehicles 02

Ford Transit 'Quickload' shuttersided vehicles

Contact Us

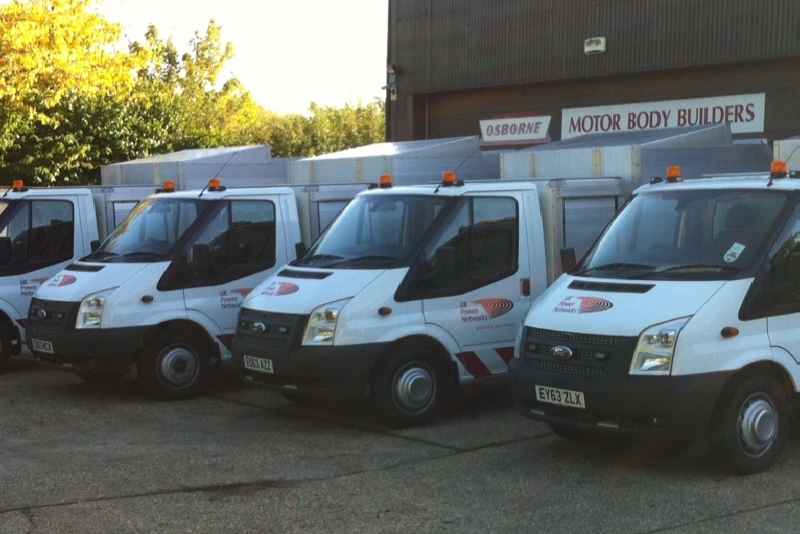

Ford Transit 350 LWB Tipper for Power Line Tree Clearance

Grounds Maintenance Vehicles 03

Ford Transit 350 LWB Dual Compartment Tipping Specification for Power Line Tree Clearance

Specialist Commercial Vehicle Bodybuilders Osborne Motor Bodies Ltd have recently completed a batch of special dual compartment tipping bodies specifically designed to end user requirements for power line tree clearance operations.

Based on Ford Transit 350 LWB Chassis cabs, the vehicles featured a secure GRP forward compartment with side access via two alloy roll-up shutters fitted with lift bar and additional Hasp and Staples.

The tipping body has a galvanised steel tipping subframe with underfloor hydraulic ram. The smooth alloy plank floor ensures clean tipping and full height fixed front and side panels form the load compartmnet. The rear is enclosed by an alloy plank double acting tailgate with drop-down access step and towball protection plate. Robust access grab handle is fitted to nearside rear.

The front section of the load compartment is enclosed by a sloping alloy roof section to contain chippings. Below this along the offside inner sideboard galvanised ladder brackets are fitted to carry ladder, with securing strap.

Grounds Maintenance Vehicles 02

Ford Transit 350 LWB Dual Compartment Tipping Specification for Power Line Tree Clearance

The vehicle is fitted with all lighting to meet legal requirements plus additional roof mounted beacons and front and rear Amber hazard LED strobes.

Towing is facilitated by approved Witter towbar fitted with Universal ball/pin coupling and 7-pin electrics.

Completed vehicle has an enviable 1000KG payload , with its robust and durable alloy construction ensuring many years of trouble free service.

For more details contact Mr. Anthony R. Osborne on 01371 831313.

Contact Us

Isuzu N75.190 "Safeload" Dairy Delivery Vehicle

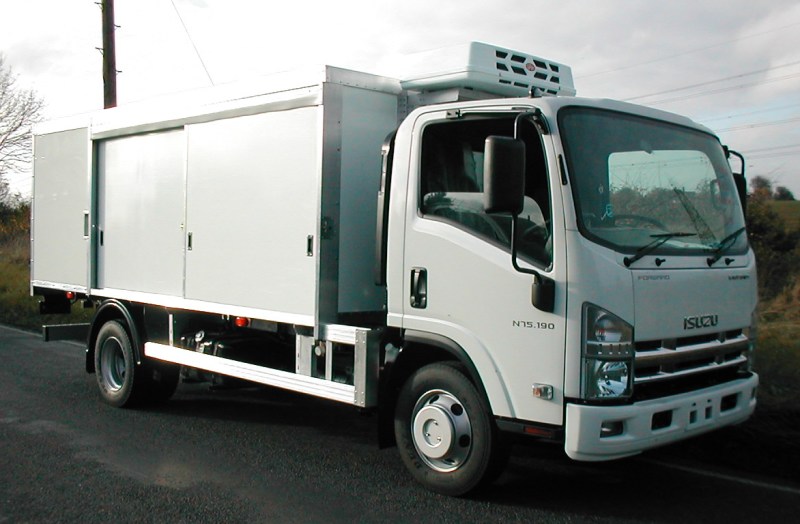

Side View of Isuzu N75.190 "Safeload" Dairy Delivery Vehicle

Side View of Isuzu N75.190 "Safeload" Dairy Delivery Vehicle

Osborne Motor Bodies have recently completed an Isuzu N75.190 "Safeload" Dairy Delivery Vehicle.

The vehicle has a fully insulated and refrigerated forwarded compartment and an ambient rear compartment for bread.

Construction is all aluminium throughout. Plastic mudguards are fitted over the rear wheels. Front and rear bulkheads are 54mm O/D thick three element vacuum formed panels with GRP skin both sides and a Styrofoam core. The roof has a three element build-up with the addition of strengthening timber cross rails inside the sandwich.

The birch plywood floor is covered with a two-pack polyester resin screed which is fully waterproof with drainage holes provided.

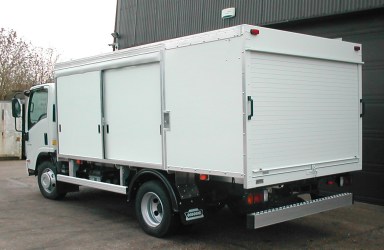

Rear View of Isuzu N75.190 "Safeload" Dairy Delivery Vehicle

Rear View of Isuzu N75.190 "Safeload" Dairy Delivery Vehicle

The 23mm thick three element door panels are top hung on nylon four wheel trollies for easy smooth operation and incorporate finger pulls each end. Standard door locks are anti-luce fasteners to hold the doors open and shut. Comprehensive alloy slatted racking is fitted inside the forward compartment with a vertical mesh partition forming a separate chilled area for goods.

Refrigeration is provided by a GAH SRF 43T Fridge Unit with three phase electric overnight standby.

The rear ambient compartment is accessed via a roller shutter. This is boxed off to prevent water throw-off onto the load when raised. Finish is plain alloy and white GRP with optional paint finish on the rear shutter and surrounds.

Payload of the vehicle is 3480KG including the driver.

Contact Us

Osborne Motor's Clear View of Specialist Fine Art Carrier

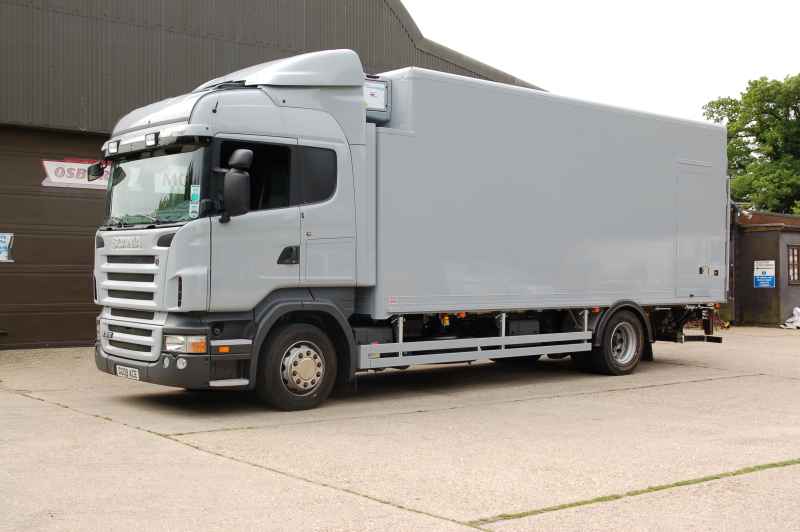

Side View of Scania Fine Art Carrier

Side View of Scania Fine Art Carrier

Long-standing Supertrucks partner, Osborne Motor Bodies Ltd, has developed a unique suite of specialist bodybuilding skills. The Saffron Walden-based company is the UK's largest manufacturer of milk delivery vehicles and, as a Supertrucks partner, has added glass carrying vehicles to its repertoire. And, in addition to its milk float and glass carrying vehicle expertise, Osborne has a further speciality - the production of high value, one-off, custom-engineered vehicles for the utility sector and other transport markets.

Its latest bespoke vehicle is a unique, very high specification, 18 tonne gvw Scania fine art carrier. "This vehicle has been built to meet the most demanding customer specification. It has to provide the highest levels of load security, both in terms of preventing in-transit damage to its priceless cargo and providing the ultimate levels of anti-theft protection," says Anthony Osborne, director.

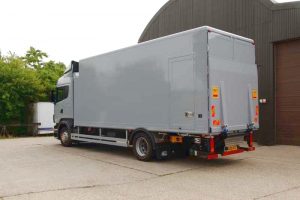

Rear View of Scania Fine Art Carrier

Rear View of Scania Fine Art Carrier

To meet customer requirements, Osborne has constructed a reverse Luton fronted 7.0m long box body on the left hand drive, Scania R310 air suspended chassis cab. Externally, the vehicle looks like it is fitted with a conventional dry freight box body, but it is actually a temperature controlled, high security body designed to carry everything from large oil paintings through to antique furniture.

The main body structure is built using high gloss 50mm insulated sandwich panels, for both roof and body sides. The insulated roof structure also incorporates Individual roof lights with heavy duty security grids. To enable a constant interior temperature to be maintained, a Carrier Supra 550 refrigeration plant, complete with mains stand-by facility, is externally mounted in the gap formed between the reverse Luton head and the Scania's cab top air deflector. This plant is able to heat or cool to maintain a consistent 12 degrees C internal temperature, regardless of ambient conditions.

Internally the body, which has heavy duty, non-slip, insulated Wisadec composite flooring is equipped with 15 rows of floor to ceiling soft wood lashing rails to provide optimum load retention for any size of painting or other antique.

Load access is via twin barn doors, which are mounted in galvanised steel rear frames. An Anteo full width, two tonne capacity cantilever lift is fitted at the rear. Also at the rear of the vehicle Osborne has provided personnel access doors on either side. A wide variety of sophisticated, state-of-the-art security systems are fitted to the vehicle. The operator has also specified the chassis with an additional set of batteries, complete with a separate split charging system.

Contact Us

Ford Transit 350 "Quickload" Vehicle with Fully Insulated Shuttersided Bodywork

Ford Transit 350 "Quickload"™ with Closed Shutters

Ford Transit 350 "Quickload"™ with Closed Shutters

Milk delivery vehicle specialists Osborne Motor Bodies Ltd have recently completed a Ford Transit 350 "Quickload" vehicle with fully insulated Shuttersided bodywork.

Constructed throughout in aluminium sections and composite GRP insulated panels the main body is enclosed by a single insulated shutter to each side. The floor is covered with a two-pack polyester resin screed which is totally waterproof. An alloy and GRP panel shelving compartment is built at the front of the deck to accommodate poly bottles.

A rear ambient bread and dry goods compartment is racked out to accommodate customer's trays. Access is via an alloy shutter which is boxed in to prevent water ingress, thus protecting the load.

One interior light wired to a switch in cab is provided in each compartment. Refrigeration is provided by a Hubbard 460 AL refrigeration unit with a Slimline roof evaporator. The unit is crankshaft driven from the vehicle engine, with either single or three phase electric overnight option available.

Ford Transit 350 "Quickload"™ with Open Shutters

Ford Transit 350 "Quickload"™ with Open Shutters

The bodywork is finish painted single colour white to match the vehicle cab, offering ideal space for dairy livery and eye catching advertising promotions. Payload for this 3500kg GVW vehicle is 1000kg including the driver.
